The original W2EWL "Cheap and Easy" article first appeared in QST in 1956, and then later with some mods in ARRL's "Single Sideband for the Radio Amateur".  Both articles are available at the buttons below:

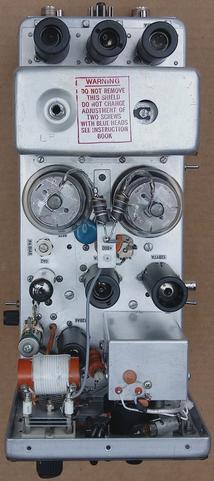

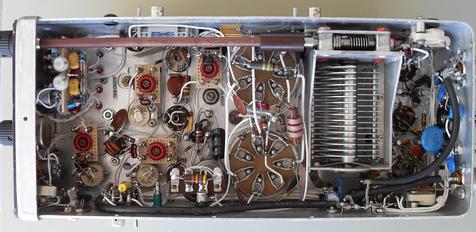

Transmitter top and bottom views

The Vintage SSB Special was my first effort after returning to homebrewing SSB radios.  This radio set consists of a 20 meter transmitter and receiver that are both built on junked ARC-5 Command transmitter chassis. Each uses the original ARC-5 VFO components, and the two units can be connected together for transceive operation.  They were described in a series of articles in Electric Radio magazine in the summer of 2010.  The transmitter is a phasing type rig and was inspired by the W2EWL "Cheap and Easy" radios from the 1950s.  My version uses a solid state phase shift network and audio filter, but the rest is vacuum tubes, including the original 1625 PA tubes used in the ARC-5.  The receiver is all tubes and uses a McCoy crystal filter.

Three articles are available on the buttons below that describe the radio set. Part 1 covers the transmitter, Part 2 the receiver and part 3 some minor upgrades added later:

The latest schematics are at this button:

Copyright © 2018 KG7TR.  Technical information on this site may be shared in the interest of promoting the hobby of amateur radio.  I do ask that you give proper credit to KG7TR for my equipment designs.

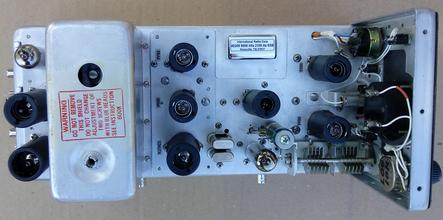

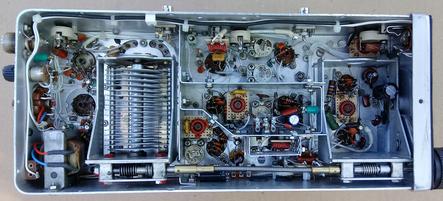

Receiver top and bottom views

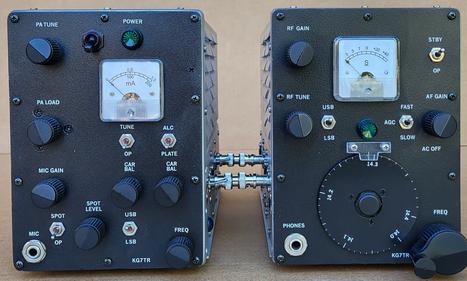

Vintage SSB Special connected together for transceive operation on 20 meters.

Vintage SSB Special

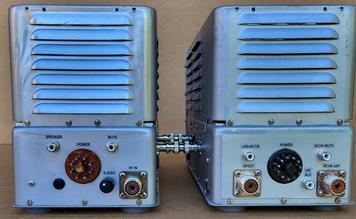

Rear view of Vintage SSB Special pair
